In the world of electronics, the diode is typically seen as a one-way street—allowing current to flow in one direction while blocking it in the other. However, there is a special type of diode that thrives when pushed “backward.” This is the story of the Zener Diode, an essential component in modern power supplies and electronic protection circuits.
What is zener?
The Zener diode is named after Clarence Melvin Zener (1905–1993), an American physicist who first theoretically described the electrical breakdown property that bears his name. While working at Westinghouse Research Laboratories, Zener published a paper in 1934 explaining the mechanism of electrical breakdown in insulators. He proposed that a strong electric field could pull electrons directly out of their atomic bonds, creating a sudden flow of current.
As semiconductor research exploded at Bell Labs, engineers realized that the breakdown effect wasn’t just a failure mode; it could be controlled for voltage regulation. And a Diode built for zener breakdown effect was named zener diode in honor of the inventor. Initially it was used in military equipment, silicon manufacturing eventually made them ubiquitous in consumer electronics.
How does it work?
At the atomic level, a Zener diode is a P-N junction, but the “secret sauce” is the doping concentration—the amount of impurities added to the silicon.
High Doping: In a true Zener diode (low voltage), the silicon is “heavily doped.” This creates a massive concentration of charge carriers and a very narrow depletion region (the “gap” between P and N sides). Because the gap is so thin, even a small voltage creates a massive electric field, allowing for Quantum Tunneling.
Light Doping: For higher voltage diodes, the doping is lighter. This creates a wider depletion region. In this wide gap, electrons have enough “runway” to accelerate to high speeds, leading to the Avalanche effect.
The Zener Mechanism
The Zener diode is designed to “rupture” at a very specific, predictable voltage without being destroyed. This is known as the Zener Breakdown Voltage (V_Z).
- Forward Bias: Acts like a normal diode (~0.7V drop).
- Reverse Bias: Below V_Z, it blocks current.
- Zener Breakdown: Once the reverse voltage hits the threshold, the diode “opens up.” Thus keeping the reverse bias voltage constant at breakdown voltage, but a sustaining current need to pass through diode to keep it in zener breakdown.

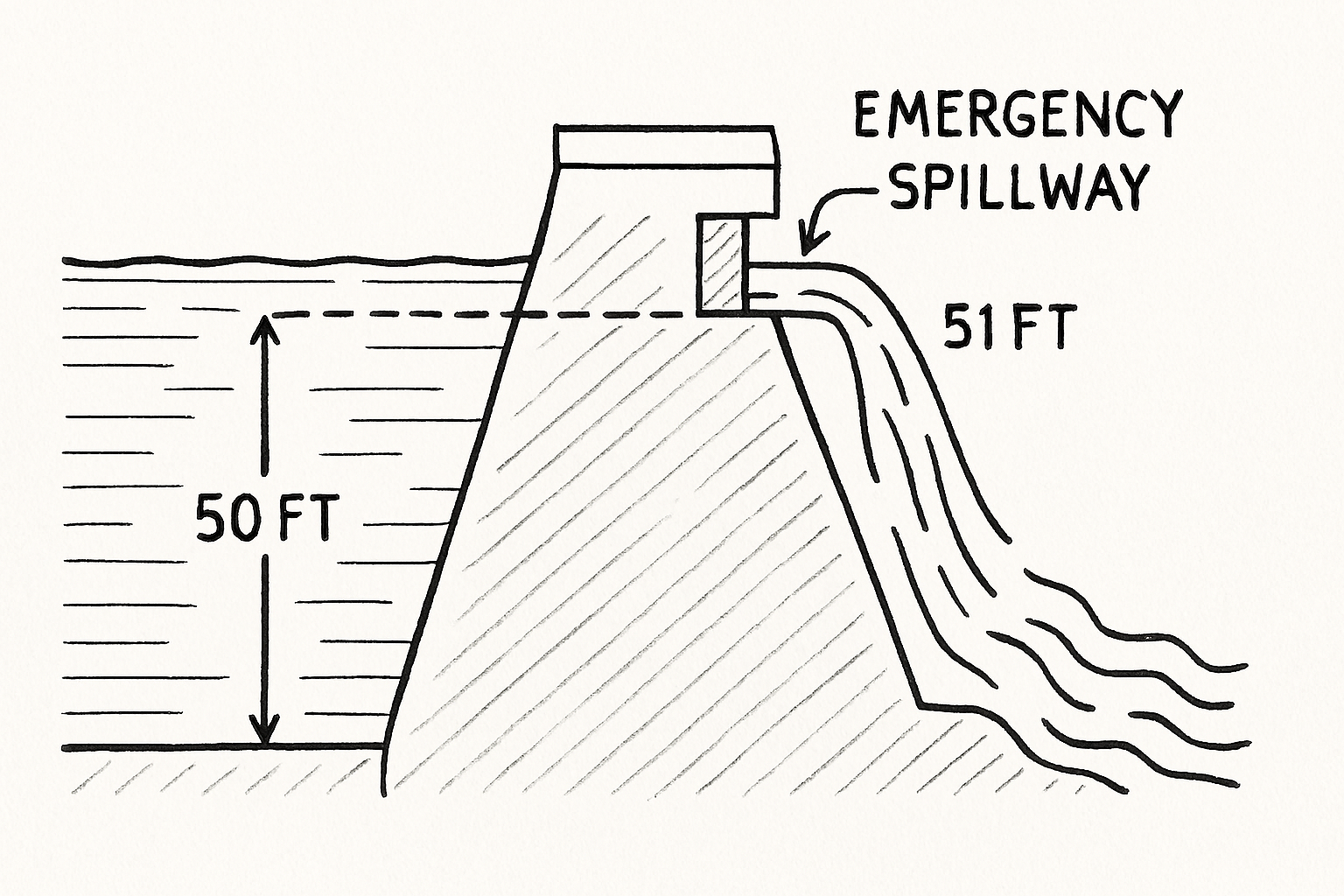

The Floodgate Analogy: Imagine a dam with an emergency spillway. Usually, the dam holds back all the water. However, the spillway is set at exactly 50 feet. If the water level reaches 51 feet, the spillway opens just enough to let the excess out, keeping the reservoir level at exactly 50 feet.
A Tale of two Physics.
The distinction between the Zener Effect (below 5V) and the Avalanche Effect (above 6V) comes down to a battle between distance and energy. It is all governed by the width of the “depletion region” (the insulating gap in the diode), which is determined by the doping concentration.
Depletion Region Width is inversely proportional to doping. i.e.
Higher Doping -> Narrower Depletion Region
Lower Doping -> Wider Depletion Region
Breakdown Voltage is directly proportional to Depletion width and Applied electrical Field. To break down the junction, we need to reach a critical electric field strength across the depletion region. e.g.
Thin gap (5nm, high doping): 5V ÷ 5nm = 1 GV/m (strong field, tunneling)
Wide gap (50nm, low doping): Need 50V to get 1 GV/m, but at this width, avalanche happens instead
The Zener Effect (Below 5V): The Power of Proximity
In low-voltage diodes, the silicon is heavily doped. This creates an incredibly thin depletion region—often less than 10 nanometers wide.The Physics: Because the gap is so narrow, the electric field becomes immense (millions of volts per meter) even at low voltages.
The Threshold: At voltages below 5V, the gap is thin enough that electrons don’t actually have to “travel” across it in the classical sense. Instead, Quantum Tunneling occurs. The electric field is strong enough to “yank” electrons directly out of the valence band of the P-type material into the conduction band of the N-type material.
Why it stops around 5V: As you design a diode for higher voltages, you must decrease the doping. This makes the depletion region wider. Once the gap exceeds a certain thickness, the electric field is no longer strong enough to force tunneling, and the Zener effect is not the only effect in action.
Effect of heat: As the temperature increases, the silicon atoms vibrate, but more importantly, the valence electrons gain thermal energy. They become “excited” and move closer to the conduction band. Because the electrons are already halfway out the door due to heat, the electric field doesn’t have to work as hard to pull them across the junction. Therefore, the breakdown happens at a lower voltage.
It’s like trying to break a stick. If the stick is already under tension (thermal energy), it takes less extra force (voltage) to snap it.
The Avalanche Effect (Above 6V): The Power of Speed
In higher-voltage diodes, the silicon is lightly doped, creating a much wider depletion region.The Physics: Electrons now have a significant “runway” to travel across. As they move through this wider gap, the electric field accelerates them to tremendous speeds.
The Threshold: To trigger an “Avalanche,” an electron must gain enough kinetic energy to knock another electron loose when it crashes into a silicon atom (Impact Ionization).
Why it starts around 6V: Below 5V or 6V, the “runway” is either too short or the voltage is too low for the electron to reach the “critical velocity” needed to break atomic bonds upon impact. It’s like a car race: if the track is only 10 feet long, you can’t hit 100 mph no matter how hard you floor it. At 6V and above, the “track” is long enough for electrons to become high-energy projectiles.
Effect of heat: In an avalanche breakdown, an electron needs to travel a certain distance to pick up enough speed to knock another electron loose. However, as temperature rises, the silicon atoms in the crystal lattice vibrate more violently. These vibrating atoms get in the way. The traveling electron constantly “bumps” into the vibrating lattice before it can reach its top speed. These frequent, low-energy collisions steal its momentum.To overcome these constant “speed bumps” and reach the necessary ionization energy, a higher voltage is required to push the electrons harder.
Imagine trying to run through a crowded room. If everyone is standing still, you can get up to a sprint easily. If everyone starts dancing wildly (high temperature), you keep bumping into people, and you need much more effort (voltage) to maintain your speed.
The “No Man’s Land” (5V to 6V): The Magic Number
At 5V, the gap is becoming too wide for efficient tunneling (Zener effect is weakening).
At 5V, the gap is just barely long enough for electrons to start accelerating toward avalanche speeds (Avalanche effect is waking up).
In a 5.6V diode, both effects are happening simultaneously at about 50/50 strength. Since the Zener effect’s voltage goes down with heat and the Avalanche effect’s voltage goes up with heat, they play a game of tug-of-war that results in a perfectly stable voltage.
Looking at the datasheet of zener diode clearly sums up this point.

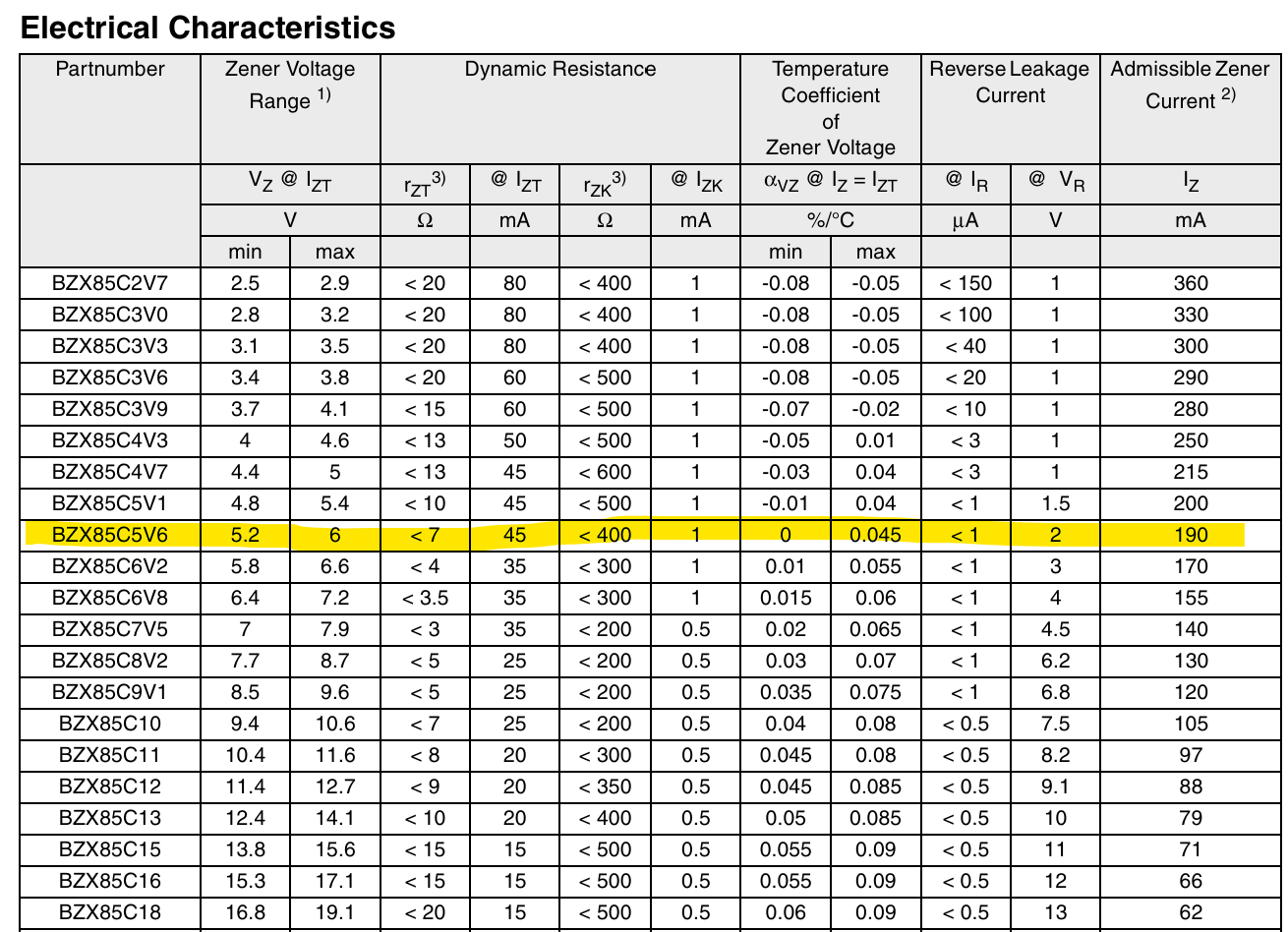

For example looking in datasheet for onsemi BZX series zener’s electrical characteristics there is a clear shift before and after 5.6V with temperature coefficient going from negative to positive.
What to do with zener?
While voltage regulation is the most famous application, the Zener diode is a versatile “Swiss Army Knife” in circuit design.

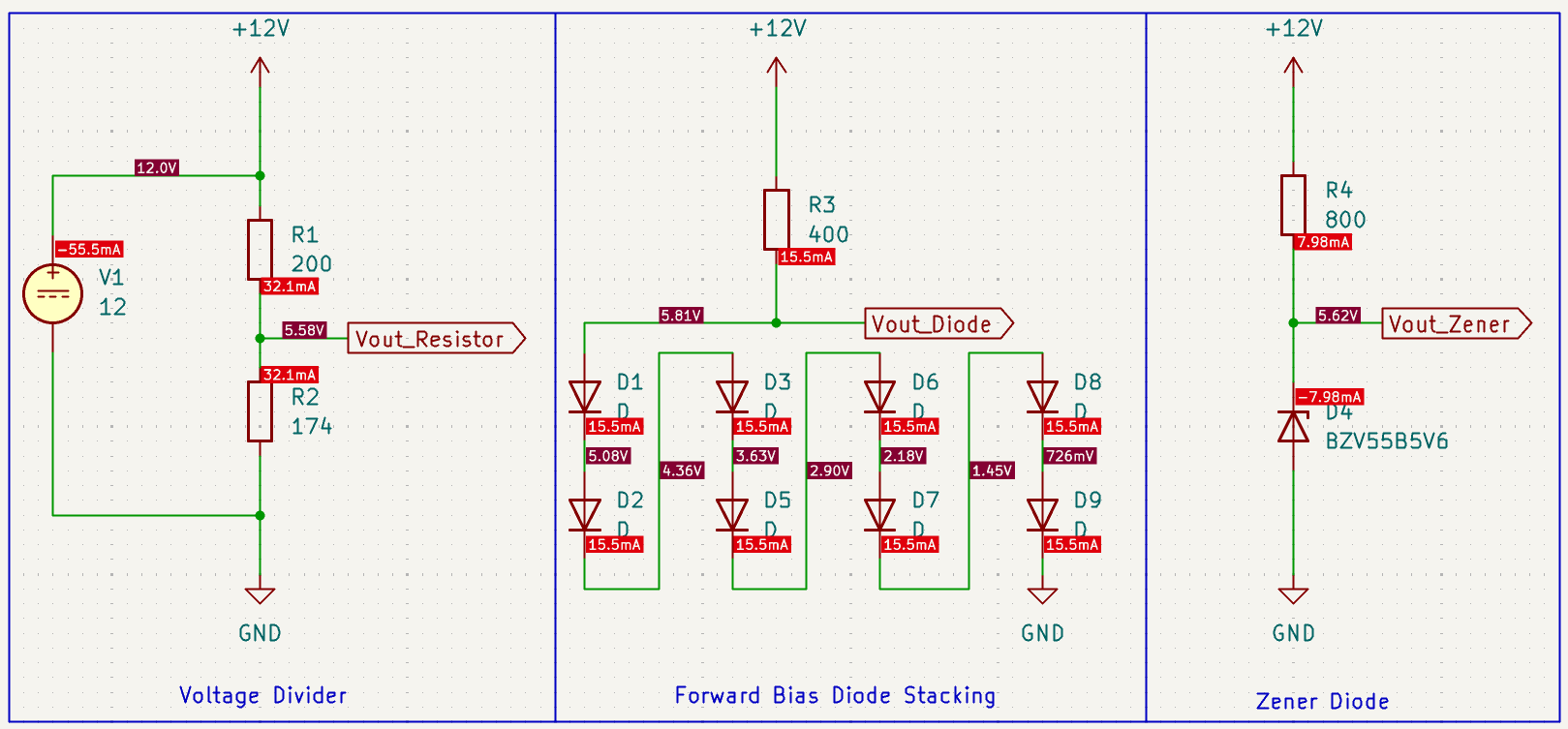

Voltage Regulation
A simple resistor divider is cheap but unreliable. If the input voltage ($V_{in}$) fluctuations, the output fluctuates proportionally. Furthermore, if the “load” (the device you are powering) draws more current, the output voltage “sags” significantly.
Diodes are better than resistors because they have a fixed voltage drop based on their chemistry. As en example by stacking three diodes in series (Forward Bias), we can create a fairly stable 2.1V reference.
The Zener diode takes this concept to the next level. Instead of stacking dozens of forward-biased diodes to reach a certain voltage, a single Zener diode can be manufactured to break down at exactly that voltage in reverse bias. On top of that we can also do series stacking of zener diodes in reverse bias to get new reference voltages. Zener diodes are manufactured with Zener voltages ranging from a few volts to hundreds of volts. While they may have a tolerance error from manufacturing process (Generally specified in datasheet), they are generally stable enough for common power supply regulation.
Let’s take an example of Zener diode with 5V breakdown wit a series resistor.
| Input Voltage ($V_{in}$) | Zener Status | Output to Load ($V_{out}$) | What happens? |
|---|---|---|---|
| 3V | Off | ~3V | Voltage is too low; Zener is “closed.” |
| 5V | Starting | ~5V | The Zener just starts to conduct. |
| 10V | Active | 5V | Zener shunts excess; Resistor drops 5V. |
| 15V | Active | 5V | Zener shunts more; Resistor drops 10V. |
Practical Use Case: Designing a Regulator
We can’t connect zener diode directly to power supply, it would draw too much current and burn out. A Series Resistor ($R_S$) to limit current must be used.
$$R_S = \frac{V_{in} - V_Z}{I_Z + I_{load}}$$Where $V_{in}$ is the input voltage,
$V_Z$ is the breakdown voltage,
$I_Z$ is the zener current,
$I_{load}$ is the load current.
Example (12V Input to 5.6V Output):
Voltage across $R_S$ = $12V - 5.6V = 6.4V$
If load requires $20 mA$ and $5 mA$ is the sustained current required by zener,
Then total current is $25mA$,
Power Dissipation: In this setup, the Zener dissipates $5.6V \times 5mA = 28mW$. This is well within the 500mW limit of a standard diode. But the total power dissipated also includes power dissipated by resistor $R_S$.
Choosing the Right Zener Diode
Selecting the right diode involves more than just picking a voltage. Engineers must consider four primary factors:
Voltage Rating ($V_Z$): This is the nominal breakdown voltage. Remember that manufacturing tolerances (usually 5% or 10%) mean a 5V Zener might actually break down at 4.8V or 5.2V.
Power Rating ($P_Z$): Zeners regulate by turning excess energy into heat. Common ratings are 0.5W (500mW) or 1W. We must ensure $P = V_Z \times I_Z$ never exceeds this rating.
Zener Impedance ($Z_Z$): This represents how much the voltage changes as the current through the diode changes. A lower impedance means better regulation.
Knee Current ($I_{ZK}$): The minimum current required to keep the diode in stable breakdown. If circuit draws too little current, the voltage regulation will be “mushy” and unstable.
Limitations and Modern Alternatives
While Zener diodes are simple and robust, they are not the most efficient regulators for all scenarios:
Efficiency: They are “shunt regulators,” meaning they waste energy as heat to maintain voltage. This is inefficient for battery-powered devices. For power regulations purposes it should only be used in cases where we care atmost about simplicity and power requirements are low.
Alternatives:
LDOs (Low-Dropout Regulators): More precise and waste less power than a simple Zener-resistor setup.
Switching Regulators: Best for high-efficiency power conversion, especially when stepping down high voltages.
Voltage Reference ICs (e.g., TL431): Provide much higher precision and lower temperature drift for sensitive measurement circuits.
Voltage Clipping and Clamping

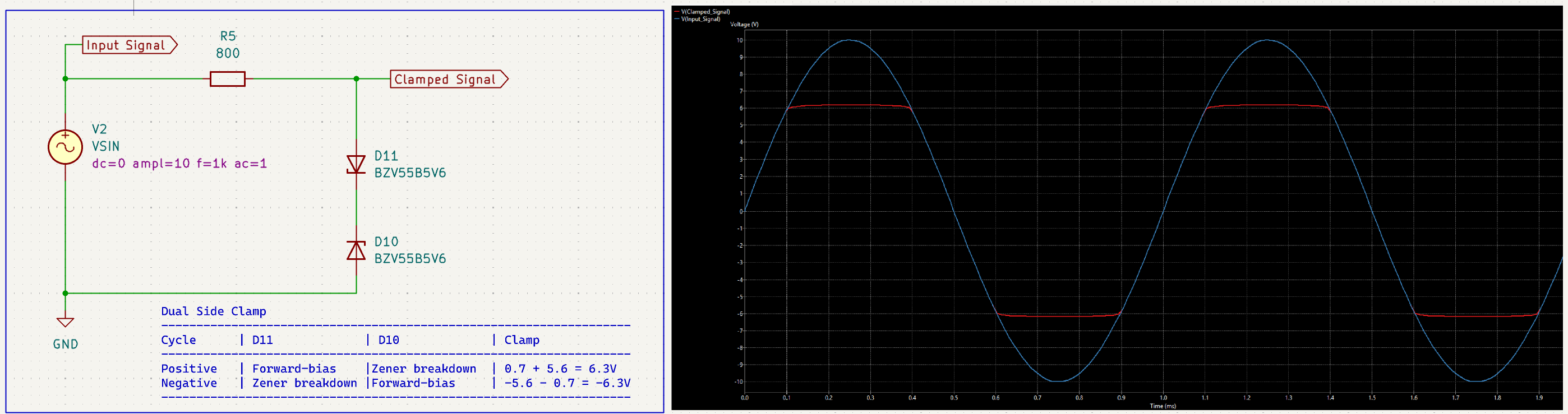

Zener diodes can be used to “clip” the peaks of an AC waveform. In audio electronics, like guitar distortion pedals, this creates a specific harmonic profile by flattening the tops of the sine waves. In protection circuits, it “clamps” a signal to a safe level to prevent damaging sensitive inputs.
Over-Voltage Protection
Similar to a surge protector, a Zener diode can be placed across a sensitive load. If the supply voltage accidentally spikes above the Zener’s rating, it instantly shunts the excess current to ground, protecting the expensive components downstream.
Voltage Shifting (Level Shifting)
If you have a 12V signal but need to communicate with a 5V logic gate, a Zener diode can be used in series to “subtract” a fixed amount of voltage. For example, a 7V Zener would drop the 12V signal down to approximately 5V.
Meter Protection
In analog multimeters, Zener diodes are often placed across the meter movement. If the user accidentally selects the wrong range and applies too much voltage, the Zener conducts, bypassing the delicate coil and preventing it from burning out.
Testing & Troubleshooting
How to Test with a Multimeter
Diode Check Mode: In forward bias, you should see ~0.7V. In reverse bias, a standard multimeter won’t show the breakdown voltage because its internal battery (usually 3V or 9V) isn’t strong enough to trigger the breakdown of higher-voltage Zeners.
Live Circuit Test: Measure the voltage across the Zener while the circuit is powered. If $V_{in}$ is high enough, the meter should read the rated $V_Z$.
Signs of Failure
Shorted (Most Common): The multimeter shows $0V$ in both directions. The diode has essentially become a wire.
Open Circuit: The multimeter shows “OL” or infinite resistance in both directions. The internal junction has vaporized.
Voltage Drift: The diode “works” but regulates at the wrong voltage (e.g., a 12V diode regulating at 9V). This usually indicates internal damage from overheating.
Conclusion: The Elegant Simplicity of the Zener
The Zener diode represents one of those rare electronic components that does exactly one thing extraordinarily well: it holds the line at a specific voltage. In an era of complex integrated circuits, the humble Zener diode remains relevant because of its simplicity, reliability, and instant response.
From protecting delicate circuits against voltage spikes to providing stable references in analog designs, the Zener diode continues to serve as the “guardian of voltage” in countless applications. Whether you’re building a simple power supply or designing protection circuits, understanding the Zener diode’s unique ability to thrive in reverse breakdown gives you a powerful tool in your electronics toolkit.
The next time you see a small two-terminal component quietly holding a voltage steady while dissipating excess energy as heat, remember: you’re witnessing quantum tunneling or avalanche multiplication in action — physics at work in the palm of your hand.
